Three Phase Adjustable 300-500V Over/Under Voltage Phase balance Protection Relay with LCD Display and Din Rail Mount

Features
1. Over Voltage Protection.
2. Under Voltage Protection.
3. Phase Loss Protection.
4.Phase Sequence Protection.
5. Phase Unbalance Protection.
6. Voltage Display.
7. Faults Records.
8. Protects appliances

Technical Parameters
Overvoltage range: 390-490V
Undervoltage adjustment range: 300-370 V
Voltage hysteresis: 10 V
Delay time for overvoltage and undervoltage: 0.1-25s
> Three-phase unbalanced action time: 1-25s
Phase loss action time: 1s

Features & details
Multi-functional and intelligent protection device. A 3-phase relay protector that is equipped with many intelligent protections i.e overvoltage, undervoltage, unbalance voltage, staggered phase protection.

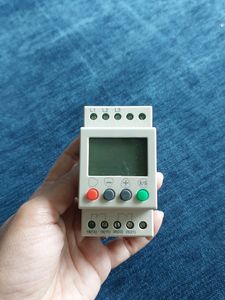

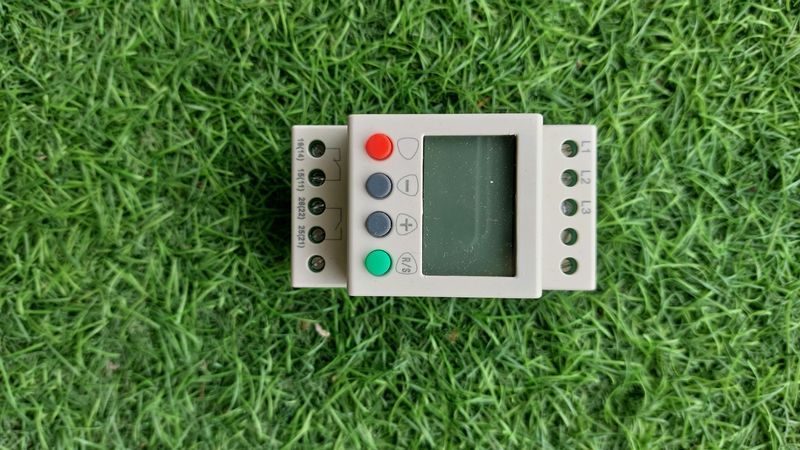

LCD display shows voltage, fault status, parameter setting.
Adjustable overvoltage value (390-490V), undervoltage value (300-370 V), voltage imbalance range(5%-29%) and action time (0.1-25s).

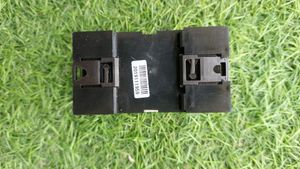

The meter can be installed on a 35 mm DIN rail
